SDR > 각형

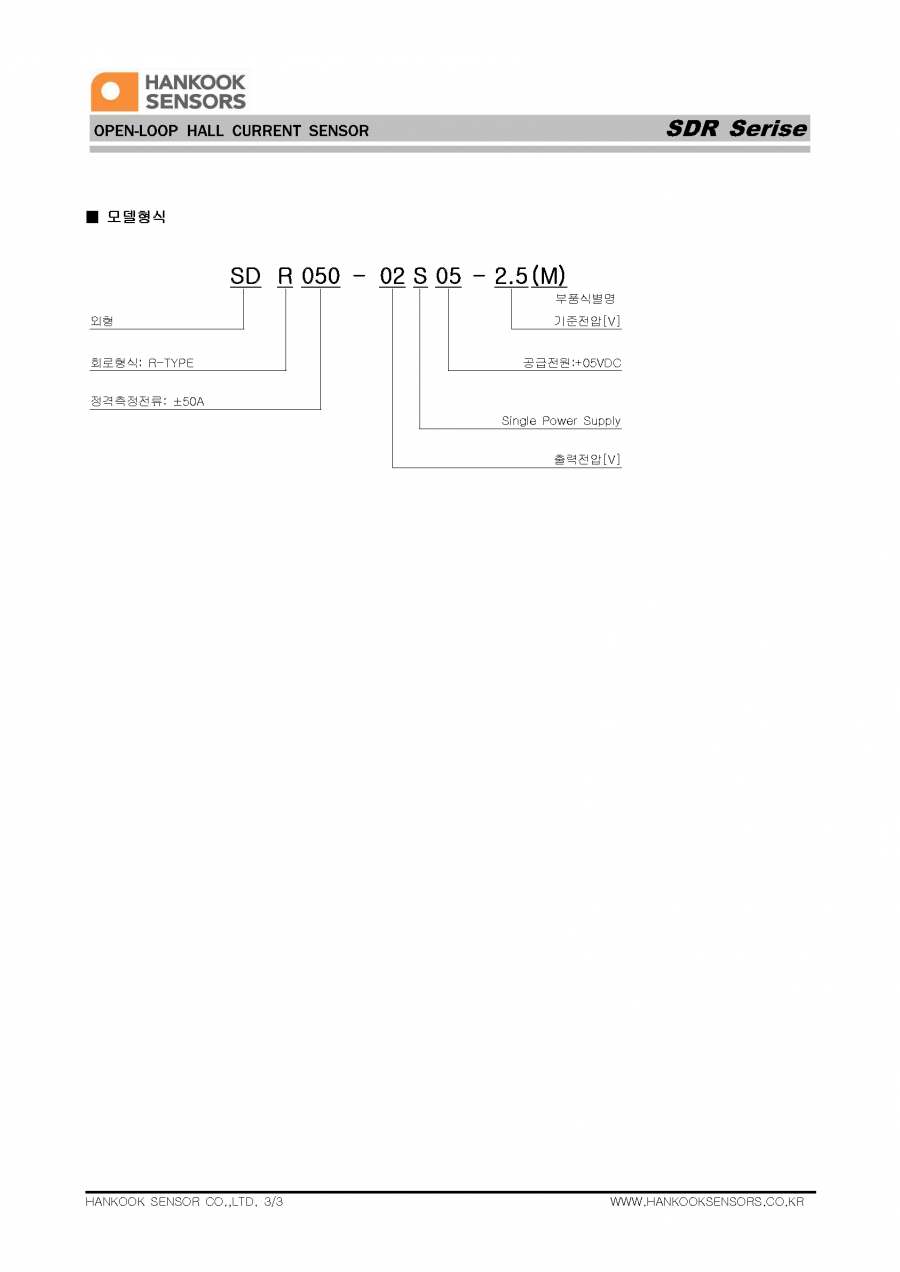

SDR

• Rated Current (F.S.) : ±40A ~ ±600A
• Output Voltage : (VCC/5)×(2.5+2)[V] ±1.5% at If
• Zero Current Offset : VCC/2[V], Within ±25mV at If = 0
• Linearity of Output : Within ±1.5% of Vh at If : F.S.
• Supply Voltage : +05V ±5%
• Vh - Response Time : 2ms Max, 10μs Max
• Frequency Range : DC ~40Hz, 1kHz
• Load Resistor : above 4.7KΩ
• Load Capacitance : 0.33(Min.)-10(Typ.)-1,000(Max.) nF
