CKPR
- Rated Current (F.S.) : 50A ~ 750A
- Output Voltage : Ref.2.5[V]±02V±1.5% at If
- Zero Current Offset : Ref.2.5[V], Within ±20mV at If = 0
- Linearity of Output : Within ±1.0% of Vh at If : F.S.
- Supply Voltage : +05V ±5%
- Vh - Response Time : 15㎲ec Max. at di/dt = F.S./㎲ec
- Frequency Range : DC ~ 10KHz
본문

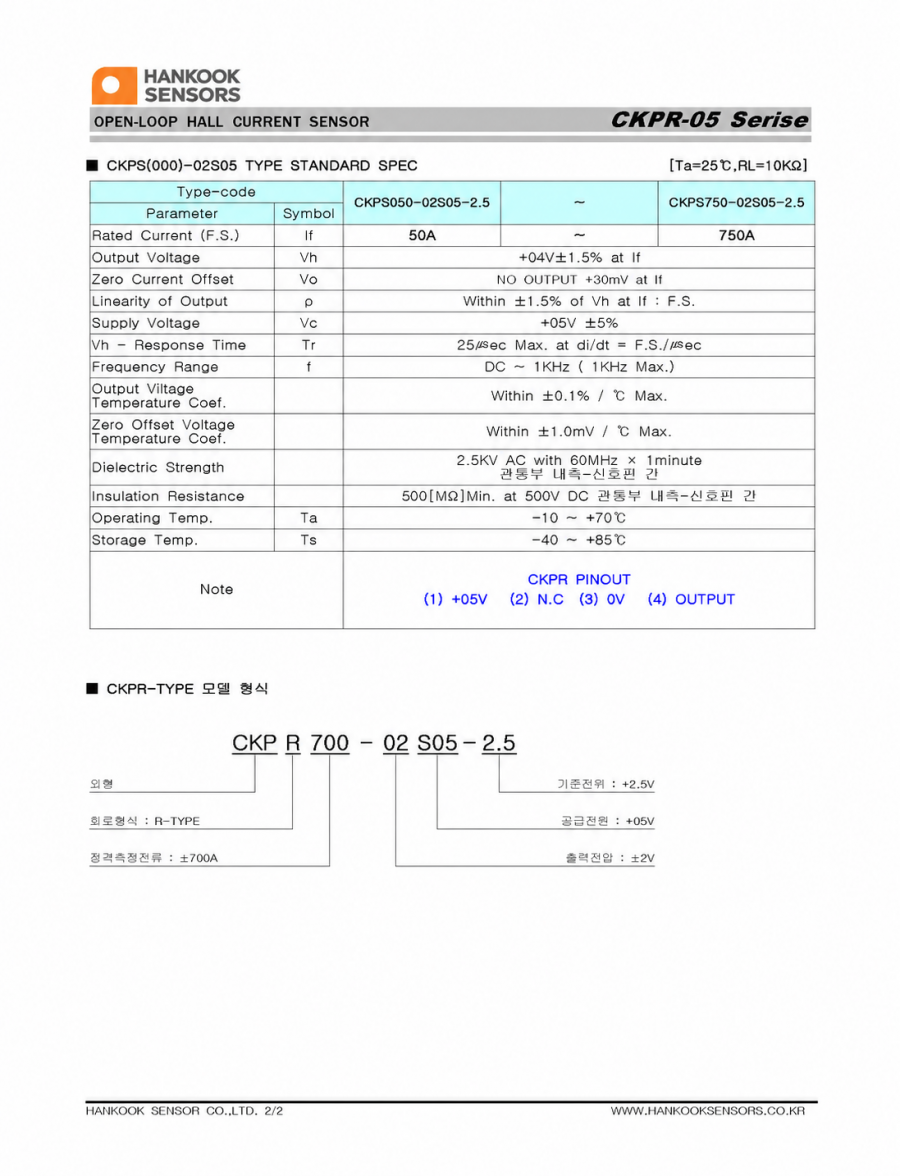

DATA SHEET
- HS_CKPR.pdf (332.7K) 171회 다운로드 | DATE : 2026-09-04 13:50:05
