HTC1-A,S,R
- Rated Current (F.S.) : 200A ~ 900A
- Output Voltage : ±04V ±3% at If
- Zero Current Offset : Within ±20mV at If = 0
- Linearity of Output : Within ±1.0% of Vh at If : F.S
- Supply Voltage : ±12V or ±15V ±5%
- Response Time : 7㎲ec Max. at di/dt = F.S./㎲ec
- Frequency Range : DC ~ 10KHz Max
본문

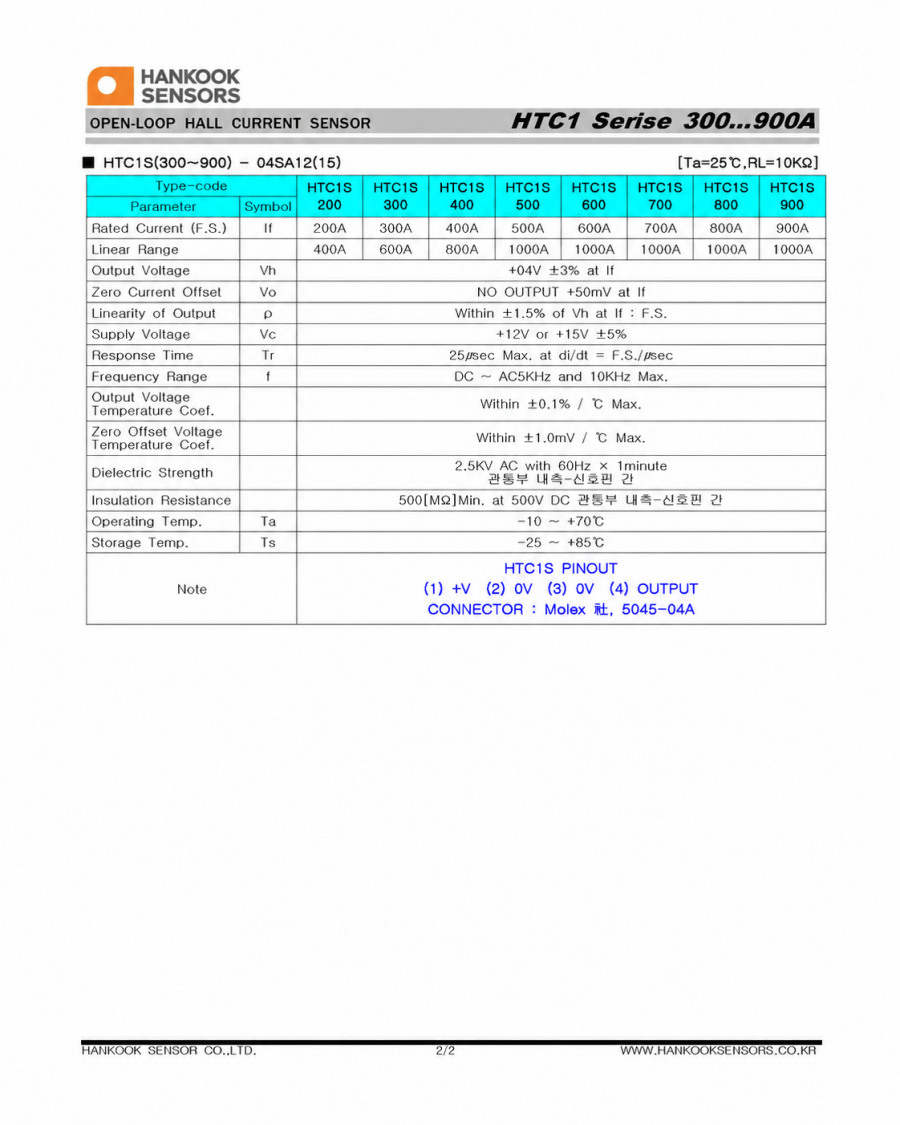

DATA SHEET
- HS_HTC.pdf (310.4K) 320회 다운로드 | DATE : 2026-09-04 12:25:18
